智能型10/100M 或10/100/1000M PoE大功率分離器，是我司自主研發的超大功率PoE分離器，可向下兼容IEEE802.3af/IEEE802.3at標準，DC輸出功率60W，可以將通過網線傳輸?shù)碾娏εc數據信號分離。以方便大功率網絡設備的電力與信號連接。超大功率POE分離器必須配套大功率的POE交換機或是供電器進行使用才可以得到輸出功率，如果配套使用IEEE802.3af,IEEE802.3at的POE交換機,則大功率分離器的輸出功率僅為25.5W以下。

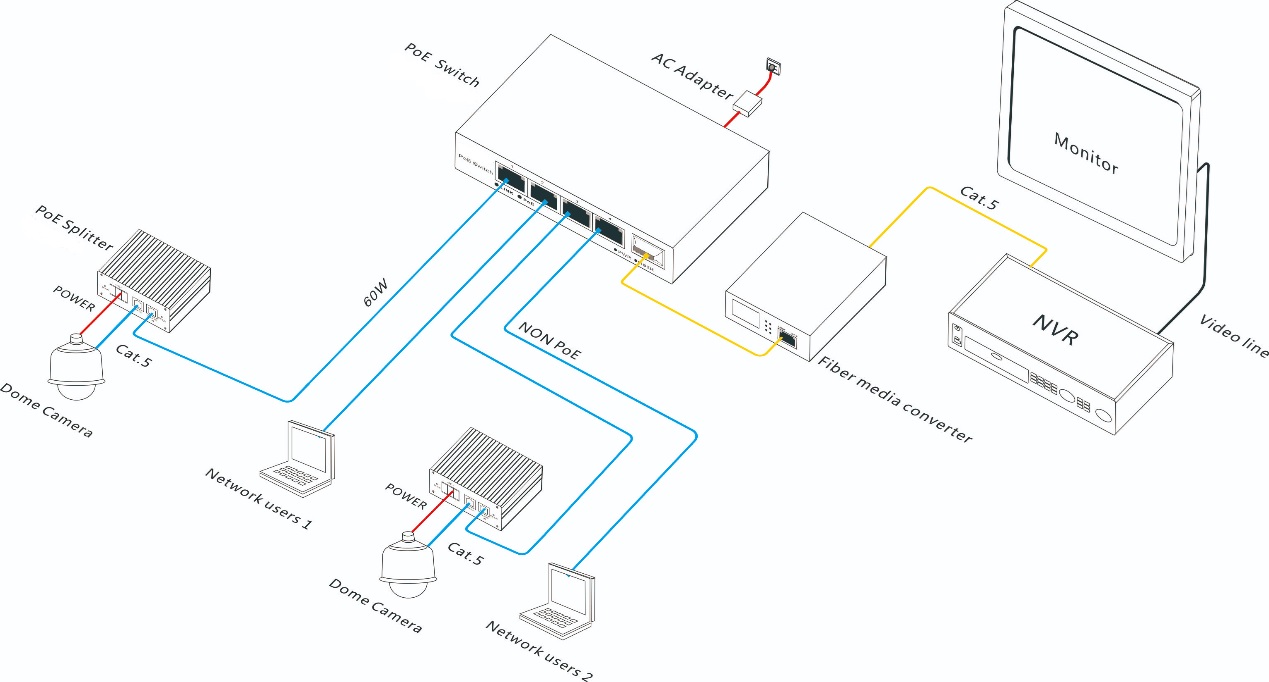

可為不支持PoE的網絡設備同時提供數據與電源。大功率 POE分離器可訂制輸出DC24V電壓，配合供電設備使用，可靈活拓展家用網絡、辦公室網絡，而無需受電力線布局限制。

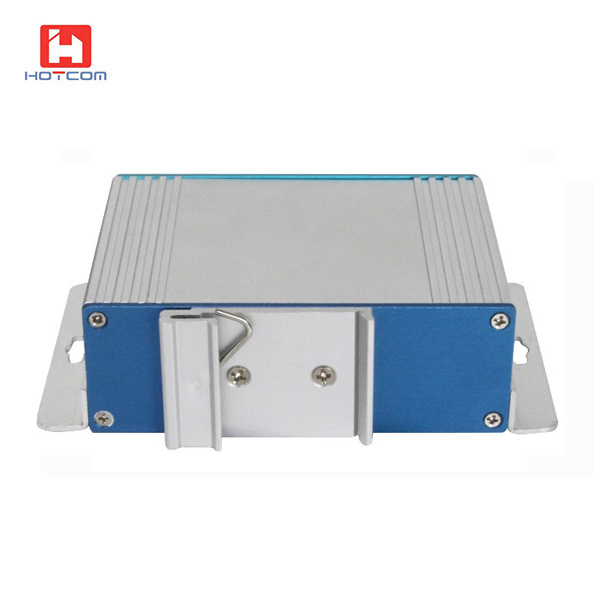

外觀尺寸：
|
產品描述
|

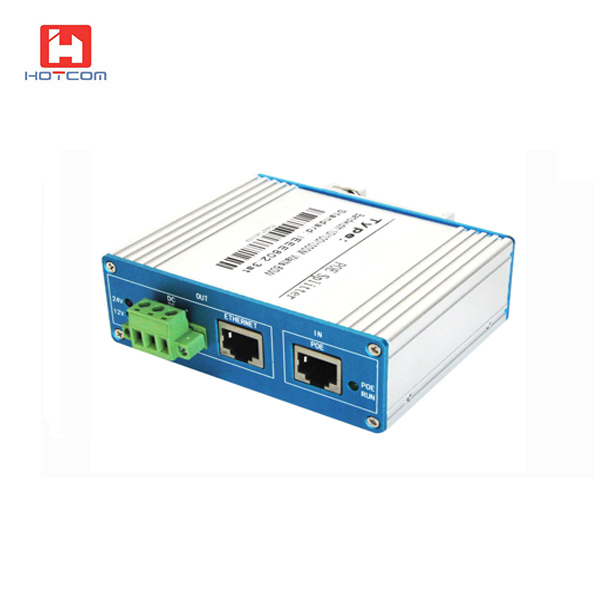

60W Single Port Gigabit PoE Splitter
|
|
產品型號
|
PD102-60W
|
|
端口描述
|
2x 10/100/1000M RJ45 ports, 1x PoE port
|
|
網絡協議
|
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af/ IEEE 802.3at
|
|
性能
|
Output: DC24V or DC 12V; Input voltage: 56V; Working Speed:10/100/1000Mbps
|
|
PoE端口
|
1x PoE Port
|
|
PoE 功率
|
60W
|
|
PoE 標準
|
LT PoE++ high power standard, IEEE 802.3af/ IEEE 802.3at
|
|
PoE類型
|
PoE power supply is four line pairs of twisted pair, the positive power supply side is 1/2 or 4/5 line pair, the negative power supply side is 3/6 or 7/8 line pair
|
|
功耗
|
75W
|
|
認證
|
CE mark, commercial, FCC Part 15 Class B, RoHS
|
|
LED燈
|
PoE working status
|
|
產品尺寸
|
LxWxH: 100x80x35mm, 0.3kg
|
|
包裝尺寸
|
LxWxH: 202x162x60mm, 0.7kg
|
|
工作環境
|
Working Temperature: 0°~ 55°C, Storage Temperature: -20°~ 75°C; Working Humidity: 10%~90%, non-condensing, Storage humidity:10%~95%,non-condensing
|
|
保修
|
1 year warranty
|
訂貨信息
Product Model: PD102G-60W
Product Description: Single port 10/100/1000M 60W PoE splitter, high power PoE, supports standard
PoE power supply, the output power of each port is 60W, voltage is 56V, and the total power can be up to 75W
Ordering Note: Default DC 12V output, can be customized DC 24V output
|
Model
|
Specs
|
|
PD101-60W
|
10/100M 2x RJ45 ports, 1x PoE port; Single PoE port power is 60W, total power can be up to 75W, DC12V output or DC 24V output, can be customized
|
|
PD102-60W
|
10/100/1000M 2x RJ45 ports, 1x PoE port; Single PoE port power is 60W, total power can be up to 75W, DC12V output or DC 24V output, can be customized
|
Note: default DC output is 12V.
