QSFP28 to QSFP28 100 Gbps DAC
100G Passive copper cables are the most common type of 100G DAC cable and are usually used for short distances. They have a low price point and deliver good performance, but their distance range of 5 meters limits them.
100G active copper cables are a newer technology and are becoming more efficient for their increased distance range of up to 10 meters. They have a higher price point but offer better performance for their increased capacity.
Another type is a hybrid 100G DAC cable. This type of cable comprises different connectors and data rates on both ends of the cable. For example, one end might be an SFP28 for 25G Ethernet, and the other could be a QSFP28 for 100G Ethernet. This cable is helpful for those who need to interconnect the switch ports.
When choosing a 100G DAC cable, it is crucial to consider the length of the run, the data rate of the devices, and the budget. For short runs, passive copper cables are a good option. Active copper cables might be a better option for longer runs or devices requiring high data rates.
No matter what type of 100G DAC cable you choose, you can be sure it will provide a fast and reliable connection.

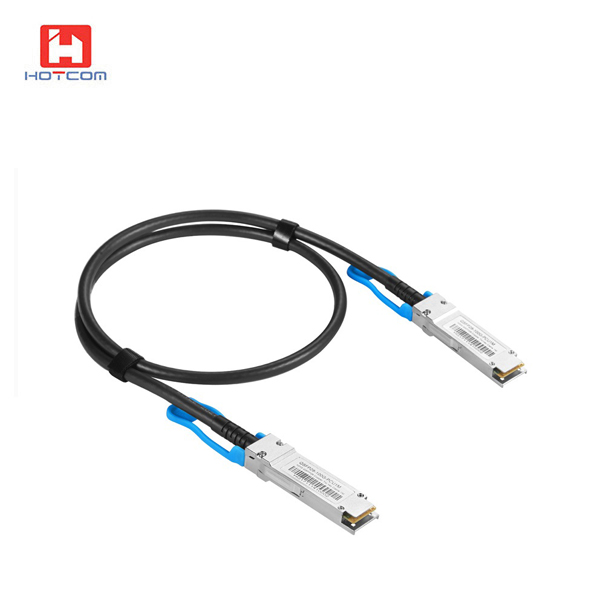

Product Description: QSFP28 to QSFP28 100 Gbps Passive Direct Attach Copper Cable
Series: 100-GBPS QSFP28
Data Rate: 100 Gigabit Ethernet (100 GbE)
Bulk Cable: Twin-Ax HSC Series
Cable Construction: 8Pair Round Cable
Signal Wire Size: 26-30 AWG
Cable Length : 0.5-5.0 M
LSZH Products Available
Temperature Range: 0-70℃
Mechanical Performance
QSFP28 Module
Module Insertion: 60N Maximum
Module Extraction: 30N Maximum
Latch Retention: 90N Minimum
Rated Durability Cycles: 50 Cycles Minimum
Electrical Performance
QSFP28 Module
Supply Voltage 3.3 VDC +/- 5%
Supply Current:0.03A Max at 3.135V
Power Consumption (DAC) : 0.125 Watt Max
Voltage: 30VAC per contact
Current: 0.5A/Signal Contact
Signal Integrity
IEEE 802.3bj (100GBASE-CR4)
IEEE 802.3by (25 Ethernet)
InfiniBand™ 4X EDR(100G)
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Products: Optional
ordering information
|
產品型號
|
描述
|
規格參數
|
|
|
|
速率
|
長度
|
AWG
|
無源/有源
|
|
DAC-QSFP28-100G-CP0.5M
|
100G QSFP28 Copper
DAC Cable,0.5 Meter,Passive
|
100G/ps
|
0.5m
|
30
|
無源
|
|
DAC-QSFP28-100G-CP1M
|
100G QSFP28 Copper
DAC Cable,1 Meter,Passive
|
100G/ps
|
1m
|
30
|
無源
|
|
DAC-QSFP28-100G-CP1.5M
|
100G QSFP28 Copper
DAC Cable,1.5 Meter,Passive
|
100G/ps
|
1.5m
|
30
|
無源
|
|
DAC-QSFP28-100G-CP2M
|
100G QSFP28 Copper
DAC Cable,2 Meters,Passive
|
100G/ps
|
2m
|
30
|
無源
|
|
DAC-QSFP28-100G-CP2.5M
|
100G QSFP28 Copper
DAC Cable,2.5 Meters,Passive
|
100G/ps
|
2.5m
|
30
|
無源
|
|
DAC-QSFP28-100G-CP3M
|
100G QSFP28 Copper
DAC Cable,3 Meters,Passive
|
100G/ps
|
3m
|
30
|
無源
|
|
DAC-QSFP28-100G-CP4M
|
100G QSFP28 Copper
DAC Cable,4 Meters,Passive
|
100G/ps
|
4m
|
26
|
無源
|
|
DAC-QSFP28-100G-CP5M
|
100G QSFP28 Copper
DAC Cable,5 Meters,Passive
|
100G/ps
|
5米
|
26
|
無源
|
Market and Application
High-Performance Computing (HPC)
Network Interface Cards (NIC's)
Data Center and Enterprise Storage Systems
Telecommunication Equipment
100Gbps Ethernet
InfiniBand™ 4X EDR
Fibre Channel
