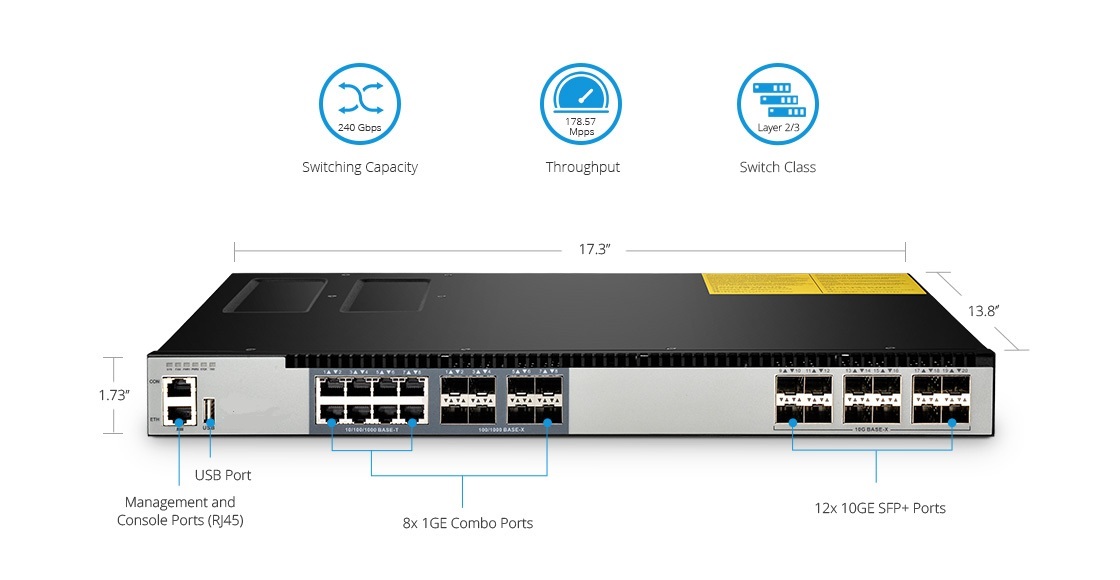

HT3350-8GC12S series 12-Port 10Gb SFP+ L3 Switch with 8 Gigabit RJ45/SFP Combo Ports
1.Data Center Grade Hardware Design
Specially for Hyperconverged Infrastructure,10G SFP+ uplink ports,1G console ports,no waste Support 2 (1+1 redundant) hot-swap Power Supplies and 4 Fans High quality electronic components Very low system power consumption
2.Data Center and Metro Ethernet
Support MLAG and VARP Support NVGRE Open API interfaces to achieve SDN MEF9/14 Service Compliant ITU-T G.8031, G.8032 Ethernet OAM: IEEE 802.1ag(CFM)
3.L2/L3 Packet Processing
STP/RSTP/MSTP(BPDU Filter/BPDU Guard/Root Guard) Partitioned STP and BPDU tunnel IEEE 802.1q VLANs and QinQ Static Link Aggregation/LACP Address Resolution Protocol (ARP) IGMP Snooping v1/v2/v3 Full IPv4 & IPv6 Routing including RIP/OSPF/BGP/ECMP Access Control List (ACL) L2-L4 classification Up to 64K MAC/8K IP LPM Flexible ingress/egress counter pools
4.Traffic Visibility and Trouble-shooting Oriented Design
CPU Traffic Rate Limit Integrated High Performance Smart Buffer Memory Storm Control (unicast, broadcast, multicast) IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Class of Service (CoS): 802.1p or DSCP Telnet/SSH/FTP/TFTP/Ping(Fast Ping)/TraceRoute
5.Supported Optical Transceivers and Cables
1G SFP, 1G BIDI SFP, 1G CWDM SFP, 1G DWDM SFP, 1GBASE-T 10G SFP+, 10G BIDI SFP+, 10G CWDM SFP+, 10G DWDM SFP+ 10GBASE-T 10G DAC 10G AOC
6.Powerful Enterprise DC Switch
The HT3150-8GC12S offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, this switch supports up to 178.57Mpps.
7.High Availability Hardware Design
HT3150-8GC12S adopts hot swappable dual-power supplies and 4 redundant fans. The switch can detect faults in power supplies, and will if any such faults are found, respond with an alarm. It can automatically adjust fan speed according to the temperature.
8.Excellent Manageability
HT3150-8GC12S makes switch management with ease with the support of SNMP/CLI/WEB and so on. With CLI and Telnet switch management is made easier. And with SSH encryption, switch management security is enhanced.
9.HT3150-8GC12S Switch Performance Validation
HT3150-8GC12S switch is valid for the IETF RFC2544 standard, which provides to evaluate the performance of network devices. The throughput test determines how well suited a device is to applications in which minimal frame loss is critical.
