Hotcom POL Smart Hotel Solution
2021/7/6 14:58:00
Overview
The traditional hotel is "a room with many lines", a room with many cables, hotel rooms are generally more business systems, so the deployment of complex, weak electrical personnel increased a lot of engineering, and the problem has not been well solved.
H&T POL smart hotel solution, is through a fiber access bearing all the hotel business, can effectively solve the problem of multiple networks and cables. The core value of this solution is "three networks in one".
Network characteristics and requirements
The hotel has a large amount of Internet traffic, high mobility, complex intranet, high bandwidth requirements and high stability requirements.
Guests can access the Internet anywhere and anytime without interfering with each other.
IPTV, fixed telephone, monitoring, Internet access and IoT control.
Internet access behaviour audit.

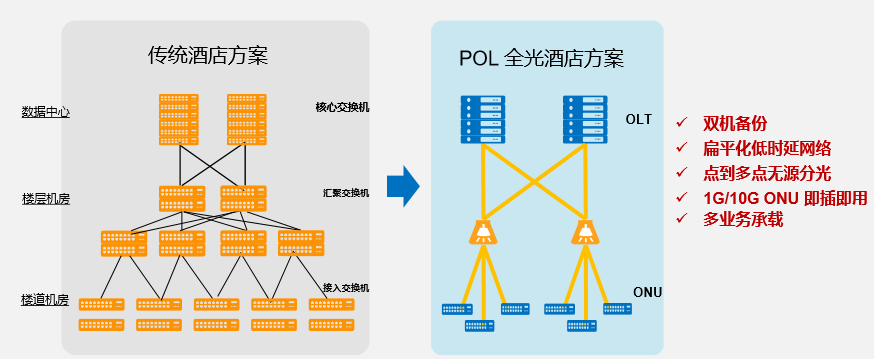

Features of traditional networking
Traditional hotel networking has a variety of networks, (fixed telephone network, and broadband Internet, monitoring lines): 1.
1. large wiring projects, complex construction, large investment.
2. many network access nodes, coupled with the copper wire is easy to oxidation caused by poor contact, resulting in many faults, fault is not easy to locate, need a longer time and more manpower to troubleshoot.
3. inconvenient service upgrade, easily causing loss of initial investment.
H&T All-optical Wiring Solution
The all-optical wisdom hotel solution carries all hotel services through optical fibre access, which can effectively solve the problem of multiple networks and cables. One line realises all current needs and meets future expansion requirements.
Its advantage is that it is extremely simplified, one room, one fibre, one machine, one network and multiple functions.
One room, one fibre: only one fibre in one room, only one terminal in one room.
One gateway for multiple uses: One converged gateway for enterprise routing, Internet logging and IPTV smart TV.
One network for multiple functions: One network for all access scenarios, room, security, wireless and access control.

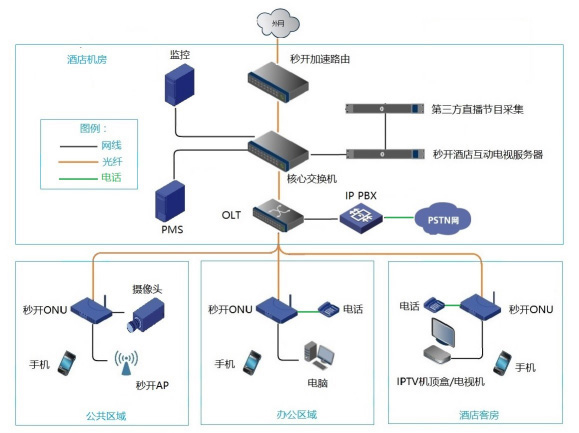

The topology diagram is as follows.
Description.
The server room to each room and each information access point are all connected by optical fiber, with standard OLT equipment at the server room end and a second open ONU at the terminal.
Broadband: ONU LAN, dial-up or VLAN Internet access.
Telephone: ONU PSTN, access to IP PBX
IPTV: ONU LAN + set-top box, access to second open hotel interactive TV server (live + on-demand)
WIFI in guest rooms: ONU WiFi.
WIFI in public areas: OUN AP.
Monitoring: ONU LAN + webcam
Programme advantages
1. Three networks in one, comprehensive wiring costs reduced by more than 70%.
2. Independent access to the Internet in the rooms, no interference with each other. 3.
3. unified management of the whole network equipment, in the second open routing directly realize the second open ONU management and second open AP management, simplify technical maintenance, reduce maintenance costs.
4. Access routing, OLT, ONU, dedicated interactive TV system, set-top box (or TV) full line integration.
5. Stable performance, good compatibility and unified after-sales service for Hongteng Optoelectronics OLT and ONU equipment.
6. H&T' EPON OLT does not need power supply during transmission and has no electronic components, so it is easy to lay and basically does not need maintenance, which saves a lot of long-term operation and management costs; EPON OLT takes up few resources at the bureau end, has a high degree of modularity, low initial investment in the system, easy to expand and high return on investment.
