HT403RI-1R3/2R3 provides 1-2 RS232/422/485 serial ports for transmission via optical fiber, supports various optical fiber network topologies: point-to-point communication, chain network, star network and redundant ring network with self-healing protection, etc., and can be grouped together on this basis to form a more complex network topology, with a ring network with self-healing protection function. The product breaks through the traditional serial interface. The product breaks through the traditional serial interface communication distance and communication rate of the contradiction, at the same time, also solved the electromagnetic interference, ground loop interference and lightning damage problems, greatly improving the reliability of data communication, security and confidentiality.
Technical parameters:
◆ Fiber optic part
Optical port: 2
Optical Fiber: Single/Dual Fiber
Fiber optic interface: FC/SC/ST/LC(SFP)
Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single mode
Relay-free transmission distance: 20~120Km
Typical Transmit Power.
Single-mode 1310/1550nm: ≥-9dBm
Multimode 850nm: -18dBm
Multimode 1310nm: -25dBm
Acceptance sensitivity range: -28dBm~- 40dBm
◆ Serial Interface:
Standard
EIA/TIA-232 RS-232 (ITU-T V.28)
EIA/TIA-422 RS-422 (ITU-T V.11)
EIA/TIA-485 RS-485 (ISO/IEC8284)
Serial Interface: RS-422: TxD+ (ITU-T V.11)
RS-422: TxD+ TxD- RxD+ RxD-
RS-485 4 wires: TxD+ TxD- RxD+ RxD- RS-485 2 wires: A (corresponds to TX+) B (corresponds to TX-) Ground
RS-232: RXD TXD Signal Ground
◆ Electrical and Mechanical Features:
Redundant dual power inputs: DC9-48V
power consumption <5W
Overload protection: Support
Reverse connection protection: Support
Redundancy protection: Support
Access terminals: 4-core 5.08mm pitch plug-in terminals
Housing: IP40 protection level, aluminium alloy material
Installation: Din-rail mounted, wall mounted
Weight: 0.75kg/set
Dimensions: 110mm (L) x 86mm (W) x 40.0mm (H)
◆ Environmental indicators
Operating Temperature: -40℃-+85
Storage Temperature: -40℃-+85℃
Operating humidity: 0%-95% (non-condensing)
MTBF: ＞100,000 hours

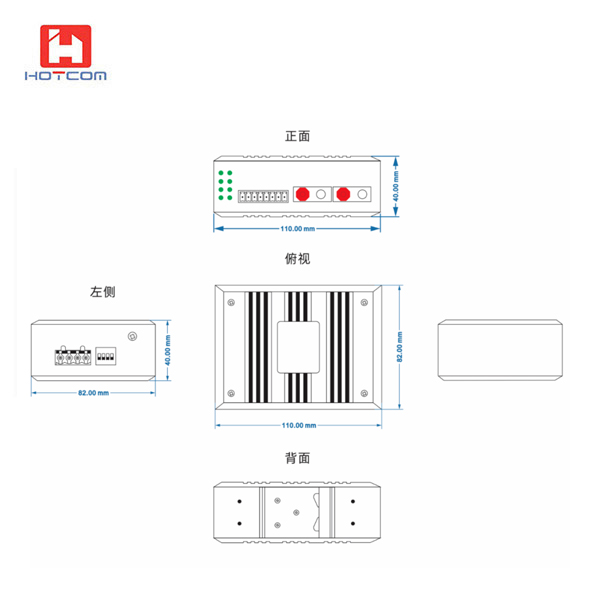

Structure&apperarance:
The product supports a variety of fibre-optic network topologies: point-to-point communication, chain network, star network and redundant ring self-healing protection topologies, and can be grouped on this basis for more complex network topologies.
◆ Point to Point Applications: Some individually dispersed bus nodes need to communicate with each other over long distances, or are subject to serious interference and need to be electrically isolated.
◆ Chain (Line) Application: Multiple bus nodes need to communicate with each other over long distances, or multiple nodes need to be completely isolated from each other to prevent interference.
◆ Star applications: when there is a need to change the bus chain topology between multiple nodes, or when there is a need for complete electrical isolation between multiple nodes;
◆ Circle: Application: Redundant fibre-optic links are required between multiple nodes to ensure reliable bus communication.
The application of this series of products is flexible, at the same time, this series of products can use dual optical ports to achieve dual-fiber ring network redundancy function, when a fiber optic failure, the system will rebuild the network link within 10ms, to protect the normal communication of the system, to achieve the self-healing protection function of the bus signal transmission, the system will be automatically restored after the elimination of network failures;
